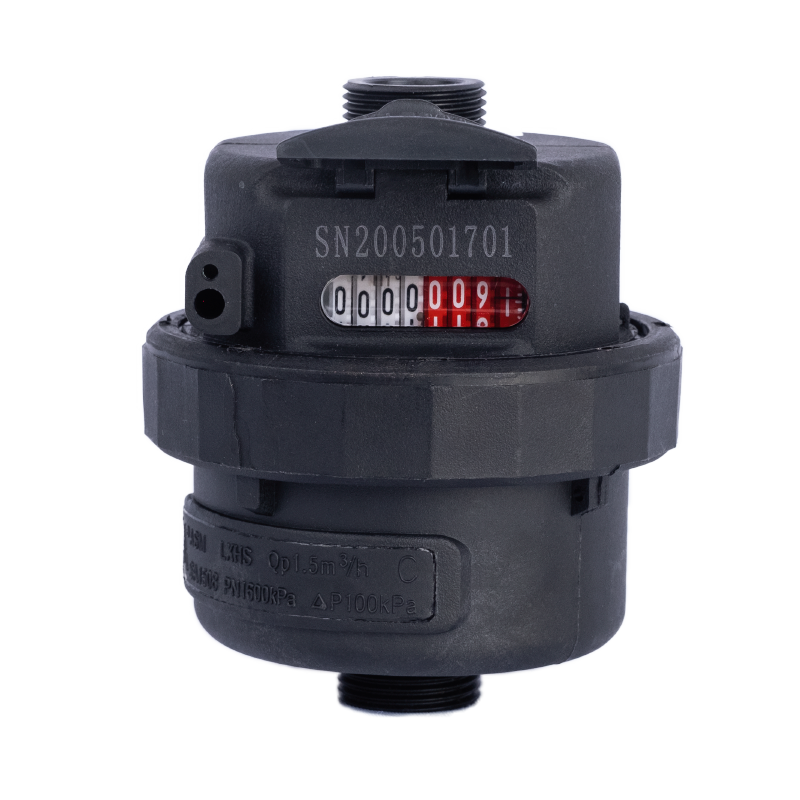

Plastic Piston Domestic Water Meter 20mm

APPLICATION

• Measurement of volume of cold potable water consumption.
• Suitable for both domestic and small business applications.
• Smart-ready meter compatible with most Reed Switches

FEATURES

• Approved to SANS1529 -1: 2019 Class C specifications.(SA1508).
• Meter accuracy is not affected by the angle of installation.
• Approved for both horizontal and vertical installation.
• Pulse prepared.
• Clear, easily read, liquid LED 8-digit counter.
• Minimum reading 0,00002 m3.
• Working temperature between 2°C and 40°C.
• Internal Non-Return Valve and Strainer.
• Working pressure: 1600 kPa.
• Grooved piston for improved performance and reliability.
• Inlet and outlet threads are compatible with ISO metric sizes.
• Meter bodies manufactured from specially blended glass-reinforced UV stabilised
  polymer tested up to 4800 kPa.
• 20mm meter has a bowed strainer with increased mesh area.
• 20mm & 25mm meter has spring loaded non-return valve.
• Robust leak proof construction.
• No external calibration facility prevents tampering.

Product Code: LXHP20CTA

Description: DOMESTIC WATER METER PLASTIC, CL C, PULSE READY
