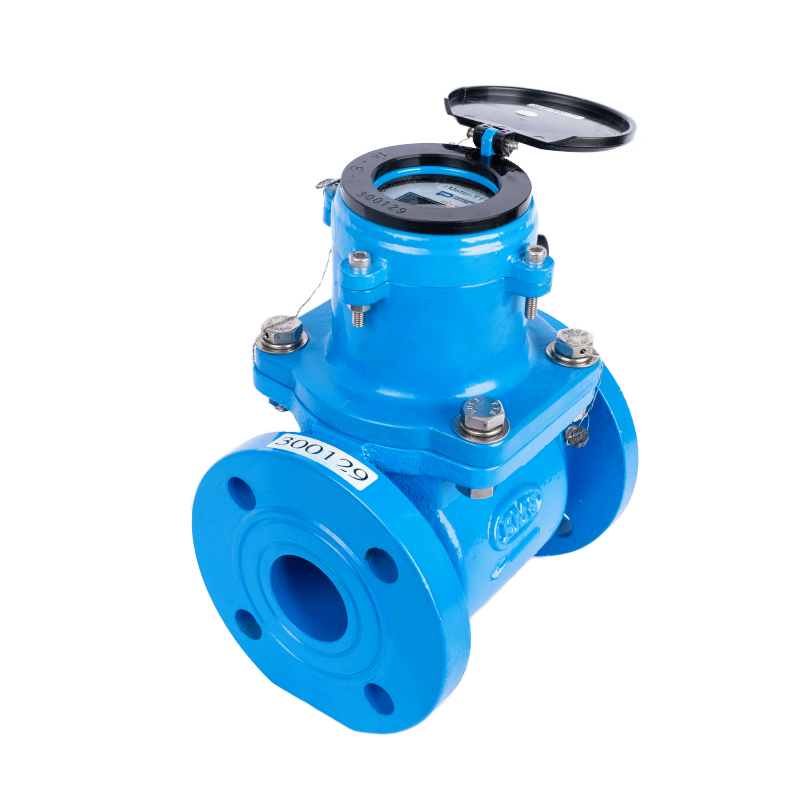

EMS Hybrid Class C Water Meter 250mm

EMS Hybrid Class C Water Meter 250mm

R 73,053.75 ZAR
R 73,053.75 ZAR
Sale Sold out
Shipping calculated at checkout.

APPLICATION

  • Measurement of volume of cold or hot potable water consumption.
  • Suitable for both domestic and small business applications.

FEATURES

  • 40mm to 100mm comply with SANS1529 -1: 2019 (Class C).
  • 150mm to 300mm comply with ISO4064 (Class C).
  • OIML R49-1 (MID) R315 capable.
  • IP68 counter with Gauss 1500 protection.
  • Clear LCD display.
  • Working temperature ≤ 60°C. (Ambient Maximum 70°C).
  • Working pressure 1600 kPa.
  • Fanged drilled Table 16.
  • 50 mm to 150mm tested and verified in South Africa.
  • Epoxy coated cast iron body.
  • Designed for Horizontal installation.
  • Internal mechanism is removable without removing the body from pipe.
  • Built in Flow Straightener.
  • ± 8-year battery life under normal use.
  • Replaceable lithium battery.
  • Multiple communication options – Pulse, 4-20mA, RS485, Modbus.
  • Intelligent Management Functions.
  • Internal Data Logging. Data scroll through the facility on the counter.
  • External GSM ow/pressure logger available.
  • Meter is not affected by magnetic interference.
  • Recommend – strainer fitted upstream of the meter.



Product Code: EMSDN250T

Description: EMS WOLTMAN CLASS C WATER METER PN16
